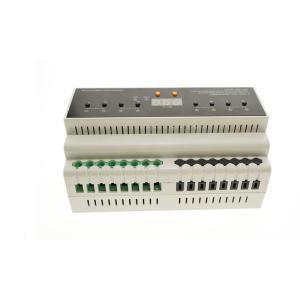

    Smart Home Lighting Control Module Red LEDs Programmable For Status Indication

    Ask Lasest Price
    Brand Name : OKYSTAR
    Model Number : OKY-S023
    Price : Negotiation
    Payment Terms : Western Union, T/T, L/C
    Supply Ability : 1000 pcs per day
    Delivery Time : 5-8 work day
    • Product Details
    • Company Profile

    Smart Home Lighting Control Module Red LEDs Programmable For Status Indication

    For Smart Home Lighting System- 4 channels of 0-10 Volt dimming control


    Description:


    Supports 120 and 220 to 240 Volt, 50/60 Hz applications
    Allows switching of lighting and exhaust fans
    Includes an override input
    Communicates using DC-NET
    Sets up via the front panel or through software
    Offers programmable functionality via DIN-CP1


    Smart Home Lighting Control Module Red LEDs Programmable For Status IndicationSmart Home Lighting Control Module Red LEDs Programmable For Status Indication

    Smart Home Lighting Control Module Red LEDs Programmable For Status Indication


    SPECIFICATIONS:

    1 – 4:(8) Red LEDs and (8) miniature pushbuttons for status indication and local control of each channel
    NET ID:(3) 7-Segment green LED digits and (2) miniature pushbuttons for setting DC-NET ID; digits also display output levels
    PWR:(1) Green LED, illuminates when DC power is applied to the NET port
    NET:(1) Yellow LED, indicates communication with the control processor
    RESET:(1) Recessed miniature pushbutton, resets internal processor


    Information Display:128*64 LCD display, display system configuration and status informationControls & Indicators:

    PWR:(1) Green LED, illuminates when DC power is applied to the NET port
    NET:(1) Yellow LED, Indicates communication with an external control processor
    BUTTON 1 – 6: (8) miniature pushbuttons for local control of devices

    For Smart Home Lighting System DIN Rail AV controller Intelligent Control Processor


    Package:

    Different package at optional:
    1. Retailing Package:Paper Package
    2. Bulking Packing:Colorful Package
    3. Retailing Box package design according to your requirement( Order > 1000PCS)


    FAQ:


    1. What is intelligent lighting control system?

    A lighting control system is an intelligent network based lighting control solution that incorporates communication between various system inputs and outputs related to lighting control with the use of one or more central computing devices. Lighting control systems are widely used on both indoor and outdoor lighting of commercial, industrial, and residential spaces.


    2. What is the advantage compare with the traditional lighting control?


    Improve energy efficiency

    Reduce maintenance cost

    Easy operation and more convenient


    3. What Okystar can supply for you?


    Okystar can offer a whole solution of lighting control system for you, economic and customization, with industrial-grade design, product architecture in line with international electrical standards, using high-quality components, products are stable and reliable.
