    RS-485 Smart Control Light Switch , Wifi Controlled Light Switch Vibration Effect

    Ask Lasest Price
    Brand Name : Okystar
    Model Number : IQ-Kepad 02
    Certification : CE
    Price : $55.00, 1-10pcs; $53.88,11-100pcs; $51.88, 100-300pcs; $49.88, 300pcs-500pcs.
    Payment Terms : T/T, Western Union
    Supply Ability : ≥1000 pcs Per Day
    Delivery Time : 3-5 Work Day
    • Product Details
    • Company Profile

    RS-485 Smart Control Light Switch , Wifi Controlled Light Switch Vibration Effect

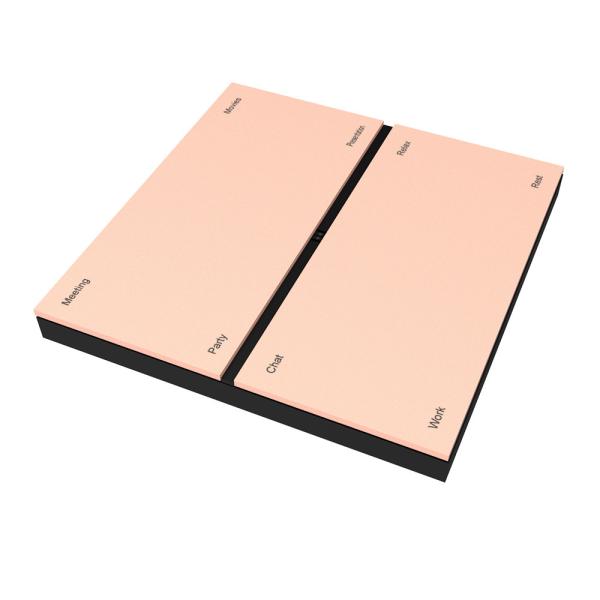

    8-Key 24V DC Smart Switch Keypad For Lighting Control System

    Description of Soft Touch Switch

    Installed with standard-86 bottom box, supports seamless connection, matched with a variety of materials and colors panel, provides 8 keys each panel, Inductive backlight, reset touch button, with vibration effect, mature structure, stable performance, adopts(aluminium alloy) oxidation process.

    Functional characteristics

    ■Provides 8 programmable buttons, ICONS can be engraved or silk-screen printed;
    ■ Button mode: short press, short press release, long press and long press release;
    ■ Inductive backlight;
    ■ Button vibration effect;
    ■ Standard 86 box installation, supports multiple panels to connect seamlessly;
    ■ Standard process, champaign gold, using (aluminum alloy) oxidation;
    ■ Panel LED indicator will flash if bus abnormal ;
    ■ Each button with LED indicator light;
    ■ Supports online refresh program;
    ■ Bus communication;

    Technical Parameters

    Working voltage24VDC±10%
    max power consumption1.6w
    static power consumption0.5W
    input key8 keys
    Appearance colorchampagne gold(other colors can be customized)
    LED indicator8 key to activate white LED light
    Key typereset touch button, with vibration effect
    backlightinfrared induction backlight
    address setting1 × address dial, address 1-63 can be set;
    hole size of bottom box (length×width×depth)86mmx86mmx45mm
    external size (length×width×height)86mm×86mm×42mm;
    storage temperature/humidity-40℃ -- 55℃/10% -- 93%RH;
    Working temperature/humidity0--45℃/20% -- 93%RH
    installation modestandard 86 bottom box installation
    net weight126g/PCS


    .jpg8-kepad 02.jpgDual-Tech Sensor.jpgLCD Touch Screen.jpg


    Different packing at optional:
    1. Retailing Packing:
    Neutral Carton Package

    2. Bulking Packing:
    Carton Package-Can save packing cost
    Anti-static bag--Can protect electronic components from potential electrostatic hazards

    3. Customized Packing
    Can design and pack according to your requirement,such as colorful box,blister packing,sealed packing with your company information, bar code,ect. ( Discuss extral)


    FAQ:

    1. What is intelligent lighting control system?
    A lighting control system is an intelligent network based lighting control solution that incorporates communication between various system inputs and outputs related to lighting control with the use of one or more central computing devices. Lighting control systems are widely used on both indoor and outdoor lighting of commercial, industrial, and residential spaces.

    2. What is the advantage compare with the traditional lighting control?

    Improve energy efficiency
    Reduce maintenance cost
    Easy operation and more convenient

    3. What Okystar can supply for you?

    Okystar can offer a whole solution of lighting control system for you, economic and customization, with industrial-grade design, product architecture in line with international electrical standards, using high-quality components, products are stable and reliable.
